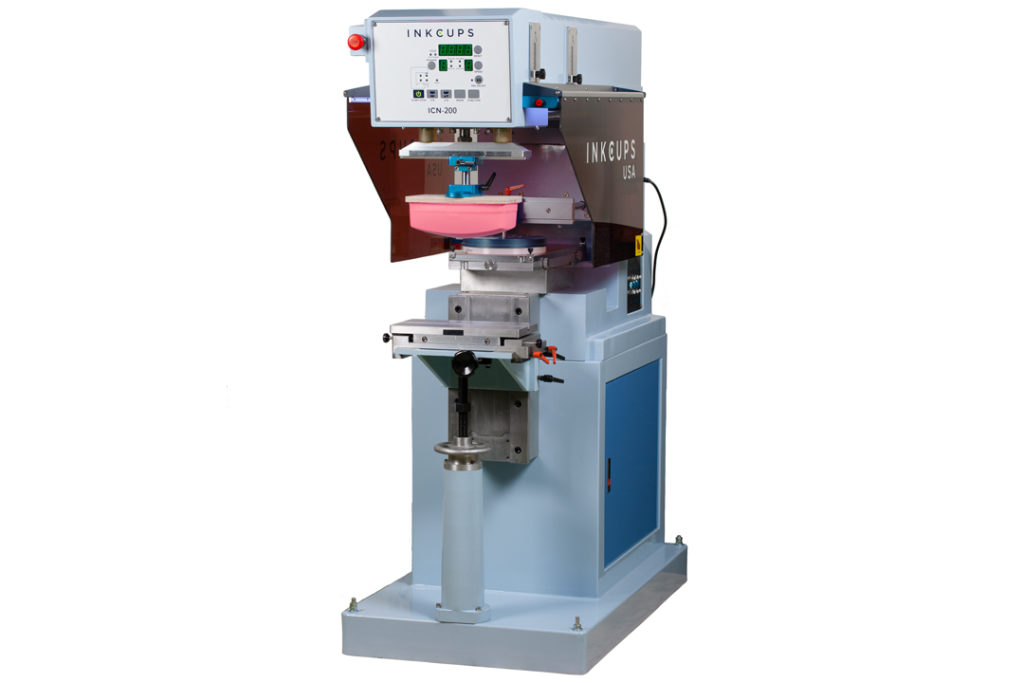

ICN-200 200mm Large Image Pad Printing Machine

ICN-200 200mm Large Image Pad Printing Machine

The ICN-200 pad printer is a one-color sealed cup pad printer ideal for large parts. This machine handles ink cups up to 7.8” (200mm), which enables it to print images up to 7.5” (190mm) in diameter. The ICN-200 is standard with a sturdy base cabinet assembly and an XYR tooling table perfect for handling and registering artwork on larger parts.

This industrial machine can handle items up to 11.7” (299mm) tall which makes it the perfect solution for plastic molded items such as trash bins and food storage containers as well as industrial products such as satellite dishes. In addition to its large printable area, the ICN-200 has an extended forward stroke with the ability to print 11.8” (300mm) in length.

Need help with the ICN-200 or other pad printing machines? Visit our FAQs section.

Features

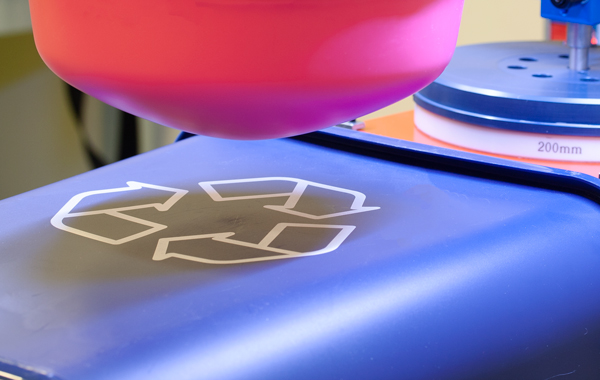

Pad Print on Recycling Bin

Print Larger Images

The ICN-200 200 mm large image pad printer excels at printing the largest pad printed images available without the need for custom equipment. Print on larger, more industrial items with ease.

USE SMALLER INK CUPS

The ICN-200 can be retrofitted with a 150 mm ink cup or a 135 mm ink cup, allowing you to cut ink costs in half when printing smaller (up to 150 mm in diameter) images. A smaller ink cup will use less ink, eliminating waste without any special modification to the machine.

Applications

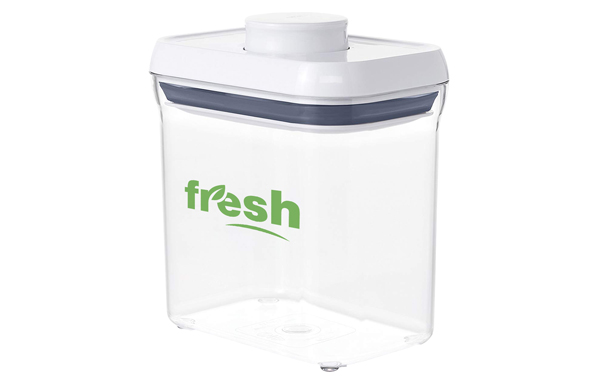

food storage container pad printed

Food Storage

These hot items are typically sold blank or with adhesive stickers to decorate the container. Quickly and easily print a brand or image up to 190 mm in diameter to really make it pop!

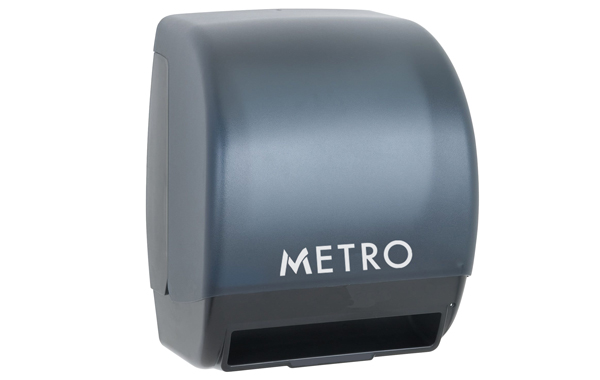

paper towel dispenser pad printed

Toiletry Dispenser

Make your brand bold and large with the ICN-200. Public restrooms are a great way to promote a brand, especially if it is clearly visible on your product.

Resources

ICN-200 Brochure
ICN-200 Video Demonstration


Specifications

Number of Colors
1
Max. Image Size
190 mm (7.5 in)
Max. Part Height
299 mm (11.8 in)
Max. Speed
600iph
Ink Cup Size
200 mm (7.87 in)
Dimensions (L x W x H)
1219.2 x 609.6 x 1524 mm (48 x 24 x 60 in)
Mounting Options
Base cabinet
Air consumption CFM (L/min):
.3 CFM (8.5 L/min)
Weight (Net/ Gross)
617 lbs. (280 kg) / 772 lbs. (350 kg)
