Laser Plate-Makers

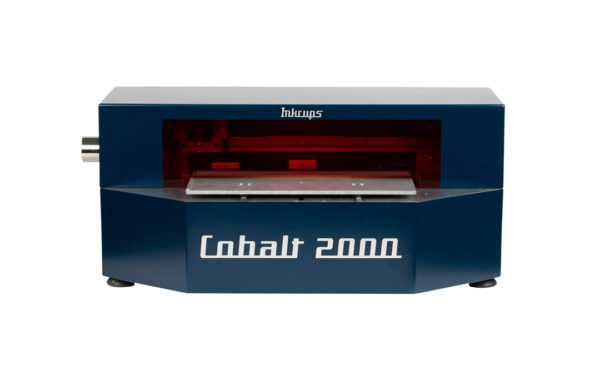

Cobalt 2000 Pad Printing Plate Maker

Cobalt 2000 Pad Printing Plate Maker

The Cobalt 2000 pad printing plate maker is an affordable alternative to polymer plates. Engineered for both large and small printing facilities, any user can now own a laser platemaker and take control of the process of making laser plates for their pad printing machines. This innovative system was developed by Inkcups engineers and features patent-pending WFC Technology that enables etching of precise, fine line graphics quickly and easily. Designed for use with Duralaze® laser plate material, depth is always consistent with up to four images per plate.

Compatible plate material includes DuraLaze.

Need help with the Cobalt 2000 or other plate-making machines? Visit our FAQs section.

FEATURES

Integrated laser control

The Cobalt 2000 features an integrated control display that allows the operator to make quick adjustment to the laser on the fly as well as view the artwork being etched. The USB port allows for direct importing of artwork without the need for an external computer.

pad printing plate maker

Compact size

Easily fit within nearly any work-space. Small enough to sit on a desk in an office setting and industrial enough to sit in a production floor.

Made in the U.S.A.

Made right here in the USA. Designed and developed in-house by Inkcups engineers with the quality you can expect from a US made product.

Ventilation System

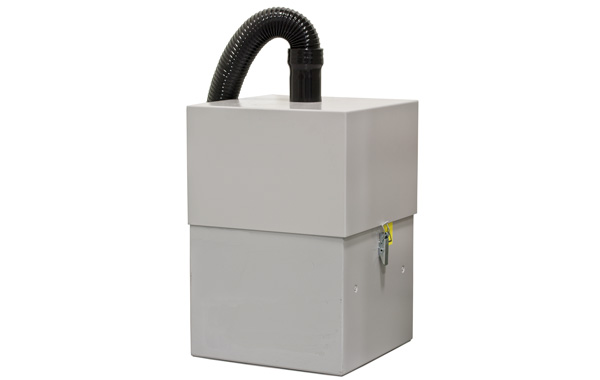

RX4 Ventilation

RX4

The RX4 advanced ventilation and exhaust system is a must-have accessory for all Inkcups’ laser plate-makers. The RX4 will eliminate dust, debris, and any gases to keep your laser plate-maker clean and reduce maintenance while filtering up to 99.7% of particles from the air. As with all equipment from Inkcups, this ventilation system is reliable and user-friendly.

Resources

Cobalt 2000 Brochure
Cobalt 2000 Video Video


Specifications

Addressable Resolution
2400
Speed (based on a 2" diameter image size)
2.19min
Max. Marking Area
390 x 173 mm (15.4 x 6.8 in)
Spot Size
80um
Max. Line Screen
175lpi
Laser tube/diode/fiber source life rating
20,000
