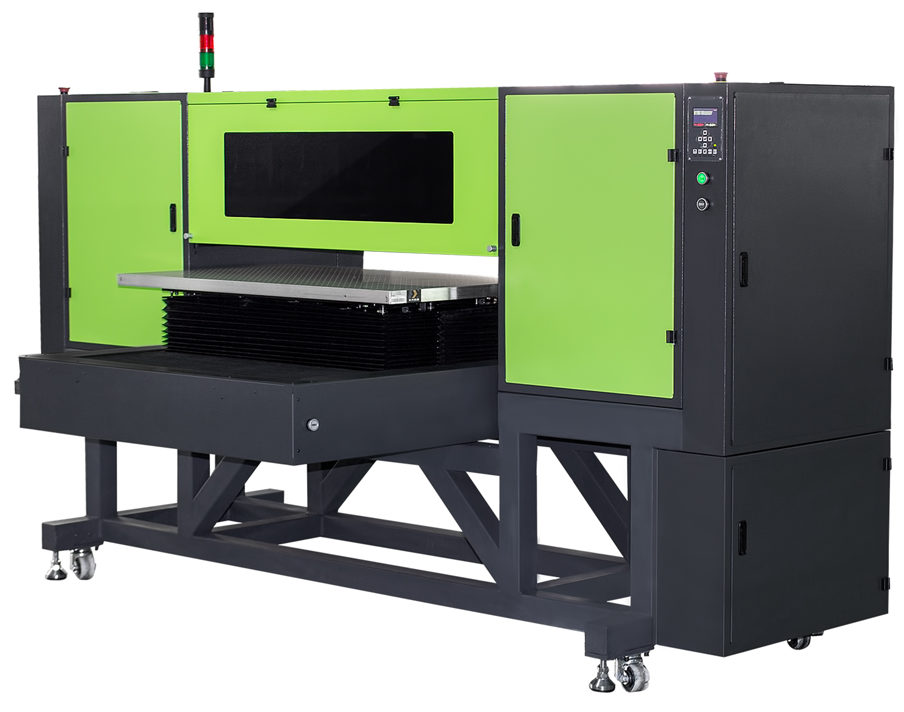

X5-T Flatbed UV Digital Printer

X5-T Flatbed UV Digital Printer

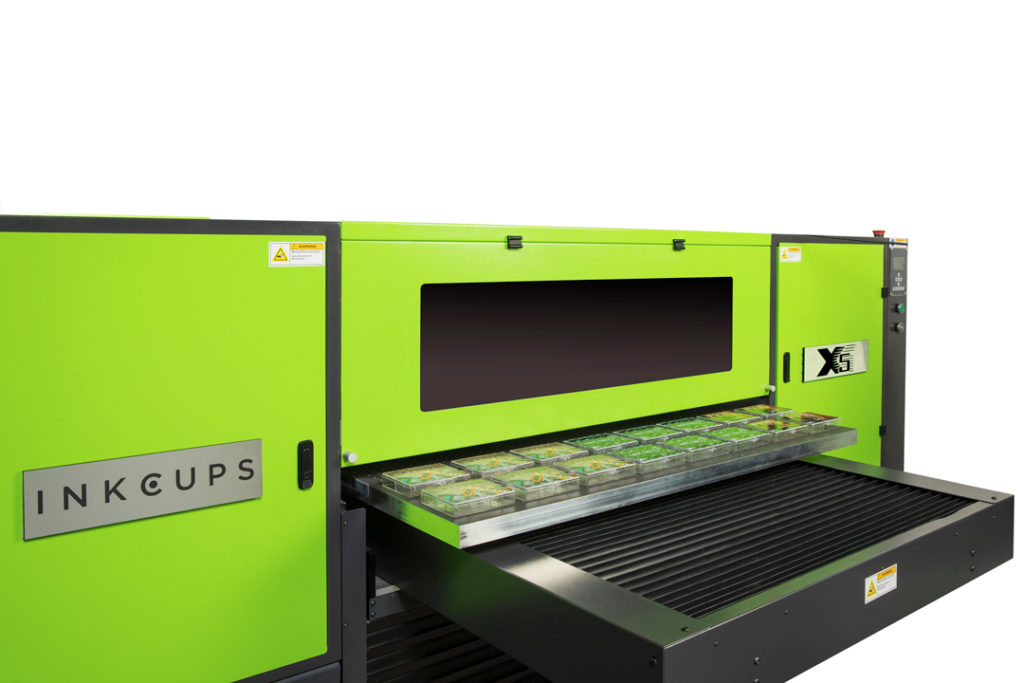

The X5-T flatbed UV digital printer is a high-speed, high-performance solution designed for full-color, direct-to-object printing. This advanced UV printing system can cover a full 43″ x 24″ (1,100 x 610 mm) area in two minutes (uni- or bi-directional) for parts up to 19.7″ (500 mm.) Utilizing the latest in print head technology, the X5-T prints CMYK plus two highly opaque UV LED-curable white inks, with an optional varnish for additional visual impact and adhesion protection.

The X5-T flatbed printing machine is designed for heavy-duty high-volume industrial print output and promotional products, featuring a rugged design that can handle near-constant use. Leveraging a large vacuum table and up to four Ricoh Gen 5 print heads, the X5-T is able to print flats and hard goods that are extremely tall up to 19.7″ in height. Ideal for full-color on-demand printing, the X5-T enables users to cost effectively lower production expenses, provide faster response to customers, and handle short-run quantities with customization.

Need help with the X5-T or any other digital printing presses? Visit our FAQs section.

  • 1,100 x 610 mm print area / 500 mm extended part height
  • 1200dpi resolution

FEATURES

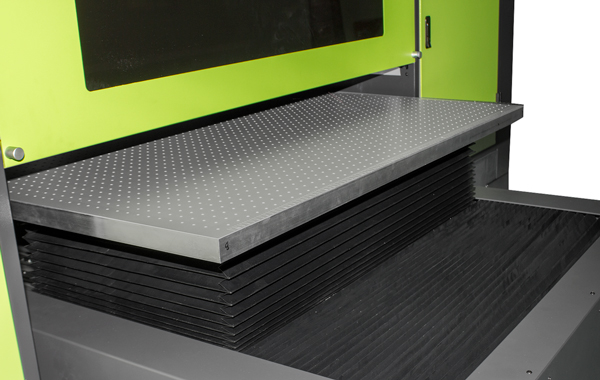

flatbed-uv-printer

Precision Flatbed Design

Inkjet printing requires extreme flatness for optimum print quality. The X5-T UV flatbed printer features a large vacuum table to ensure a precise degree of parallelism to the imaging heads.

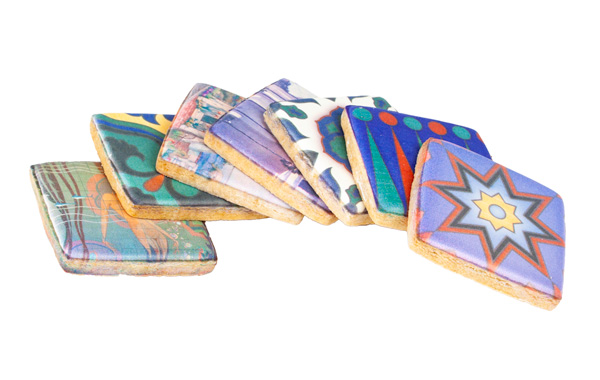

Flatbed EdiJET cookies

EdiJET Capable

Purchase an X5-T EdiJET and print directly onto a variety of edible items such as cookies, cakes, and candies. EdiJET ink is safe to consume and has been known to pass FDA regulation on finished printed goods. Inks in Inkcups’ edible ink line, Candymark have no flavor therefor and will not alter the taste of the confection it’s printed on.

PRINT INNOVATION

MIRROR PRINT FOR FLAT SURFACES

Until now, mirror print has been a print technique used strictly for cylindrical printing, however a form of mirror print can be used to decorate the flat bottom of drinkware pieces, such as rocks glasses with UV digital flatbed printers. The X5-T creates stunning full color prints on the base of old-fashioned glasses to be viewed as the drinker takes a sip from above.

Applications

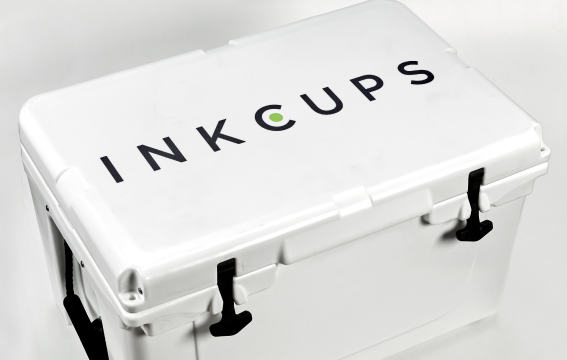

Coolers-inkjet-printing-application

Coolers

Easily print full-color images onto coolers with the extended part height of the X5-T. Quickly and easily customize the image to your specifications. Ideal for promotional products and personalization.

Watch the video: X5-T® Printing on a Cooler.

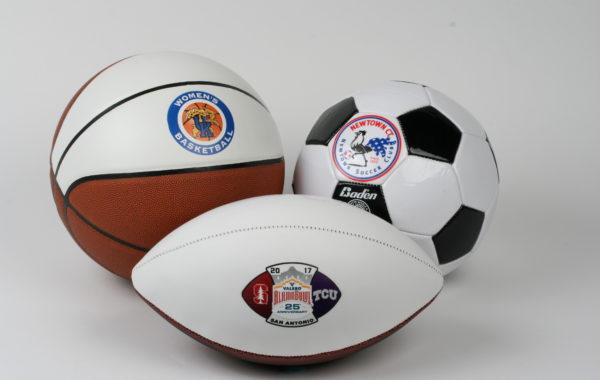

Digitally Printed Sports Balls

Sports Balls

Customize sporting goods to your favorite teams. Personalize footballs, basketballs, or soccer balls with vibrant graphics using the X5-T’s powerful UV printing capabilities.

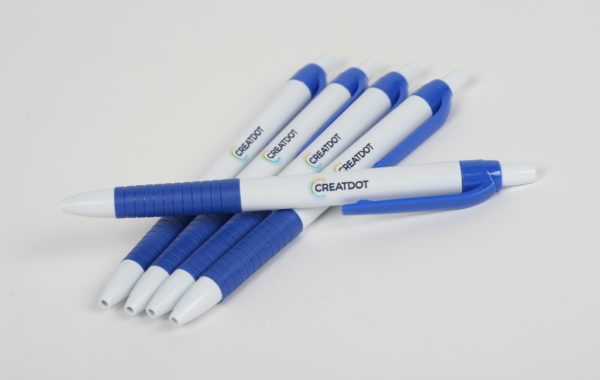

X5-T Flatbed Pen Samples

Pens

The X5-T® UV flatbed printer can decorate the ultimate promotional giveaway. Pens are an ingenious product to brand as most every person has a need for them. Special tooling ensures that pens travel into the machine for printing without shifting, and hold them in place during the process. Watch the video: Application Spotlight: Digital Printing on Pens.

OPTIONAL ACCESSORIES

Print head recovery system

Head Recovery System

Keep your UV flatbed printing machine operating at its best. The Head Recovery System is capable of cleaning both Gen 4 and Gen 5 printheads. Head recovery can be performed to restore printheads that may be clogged and generally increase the longevity of the printhead. By using EBD cleaner in combination with this unit, printheads can be cleaned for further printing.

  • Cleans Gen 4 and 5 printheads
  • Utilizes EBD Cleaner
  • Available in 120VAC or 220VAC

Resources

X5-T Brochure
X5-T Printing on Hard Coolers Video Video


Specifications

Product Type
Flatbed or slightly curved
Bed Size
1100 x 610 mm (43 x 24 in)
Speed (based on bed size)
19 m²/hr
Max. Part Height
500 mm (19.7 in)
Lamp Style
2 UV LED
Ink Type
UV LED
Ink Configuration
CMYKWW (V optional)
Print Modes
Uni/Bi
Bulk Ink System
3 Liter
Dimensions (lxwxh)
2632 x 1474 x 1691 mm (103.7 x 58.1 x 66.6 in)
Voltage
220 VAC, Single Phase, 15 AMP
Maximum Resolution
1200dpi
Bed Type
Flatbed
Weight
1103 lbs. (500 kg)
