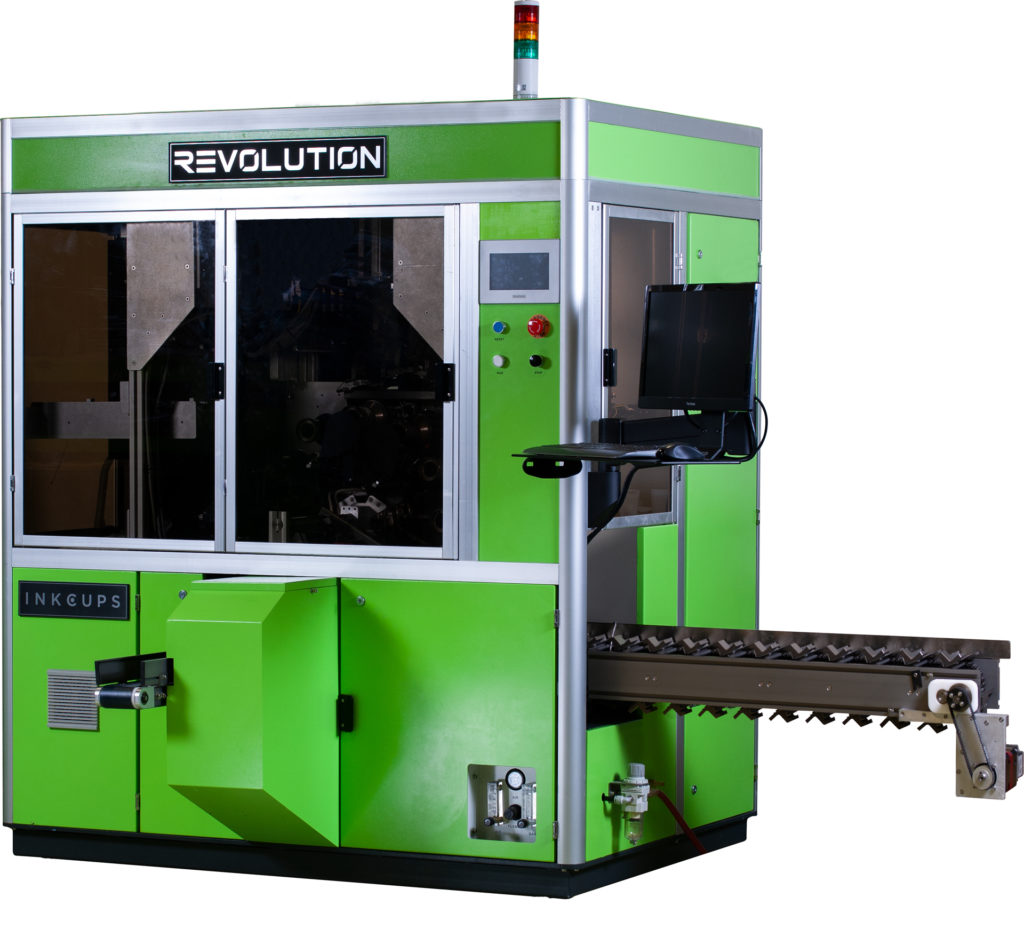

Revolution® High-Speed Digital Cylinder Printer

The Revolution® is a high-speed cylindrical inkjet printer that offers full-color 360° graphics, unparalleled print quality, and speed. Ideal for manufacturers who need more flexibility in volume printing. The Revolution UV cylinder printer offers smooth, seamless graphics in vibrant CMYK with a dedicated white print head and varnish, all standard on each machine. In addition, the Revolution boasts 12 stations, automatic load/unload, an integrated pre-treatment system, and can print up to 600 parts per hour.

For high-speed plateless bottle printing and other applications, the Revolution® uses Inkcups’ patented helical printing image engine to achieve higher quality prints at a resolution of 702 x 900 dpi. Compared to single-pass printing, the Revolution® can print longer images (up to 220 mm) without stitching. The helical image engine offers interlaced inkjet droplets promoting uniform coverage and significantly reduces banding and lines in print.

Easily integrate a fully automated process into production. The Revolution® high-speed digital cylinder printer excels at automatic handling of parts from loading, to pre-treatment, to print. The addition of a production queue software, a feature that will automatically change the artwork to the next job once the prior job has completed, completely eliminates the need for an operator to devote all their time to a single machine.

The Revolution® high-speed digital cylinder printer is capable of utilizing any one of our UV inks. Our in-house application experts will work to identify which mix works best with your substrates. For more information about our process, read The Importance of Choosing the Right Digital Ink.

More Information
Request Information
Leasing Info

Print Innovation

Single Print Station for Color

Printing CMYK at a single station yields consistent, highly accurate dot placement, excellent print quality, and color reproduction. Other printers use a single print station for each color, compromising image quality and color due to mechanical tolerance and registration variations.

Servo Driven Angle Adjustment

The Revolution® high-speed digital cylinder printer learns the precise angle of conical-shaped containers and stores it for future use. The print head assembly moves along the taper in an XY motion maintaining the critical gap between the nozzles and the printed surface.

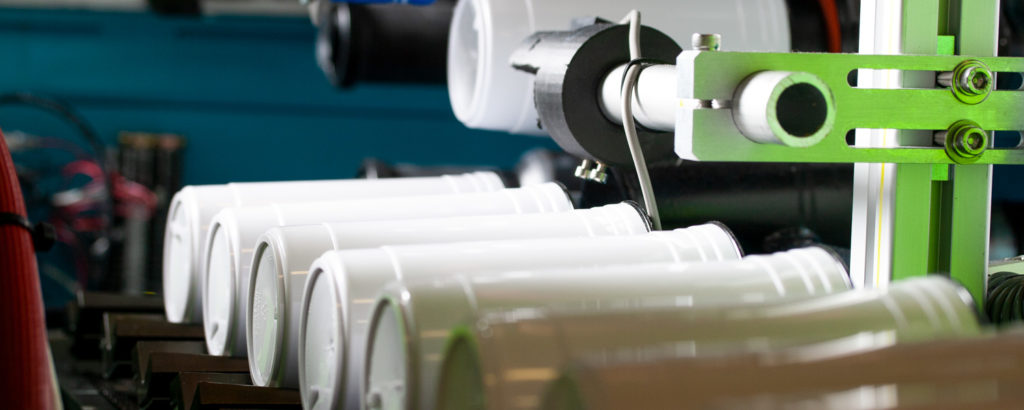

Automatic Load/Unload

Parts are automatically loaded onto a vacuum mandrel from an adjustable indexing conveyor. Once the part has cycled through the machine it is unloaded onto an exit conveyor. Automation is easily integrated into the Revolution’s® design and increases productivity because the machine is not reliant on the operator to run. The operator can then focus on higher-value operations.

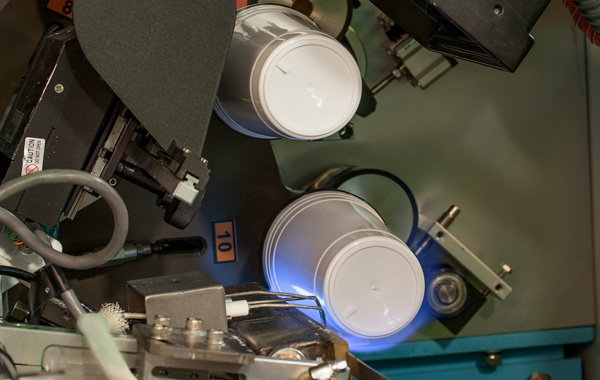

Automatic Pre-Treatment

The Revolution® high-speed digital cylinder printer is equipped with an integrated corona or plasma treatment system to ensure parts are pre-treated uniformly and consistently to achieve superior adhesion.

The Revolution® VS Single Pass Printing

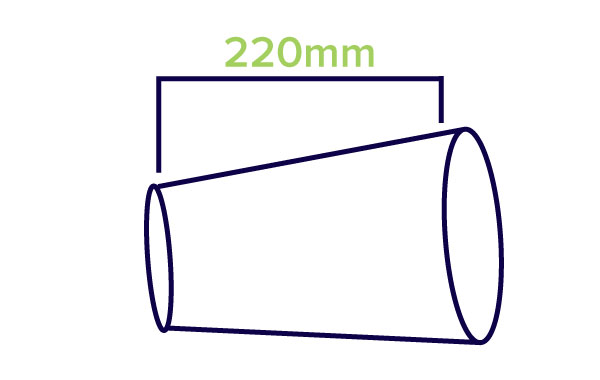

Longer Images

Helical printing enables the ability to print longer images in a single motion (up to 8.66″.) Unlike single-pass printing, which requires stitching (a second pass which leaves a line in the print) for any image over the size of the print head (typically 72 mm).

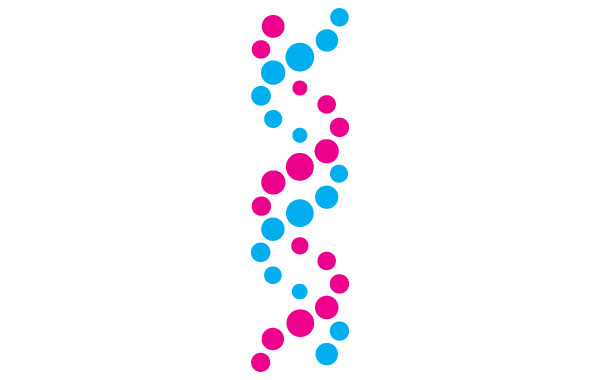

Interlacing

Helical printing interlaces the inkjet drops, smoothing out band lines and promoting uniform coverage. Single-pass printing will show a visible line of missing ink through the image if just one nozzle is out.

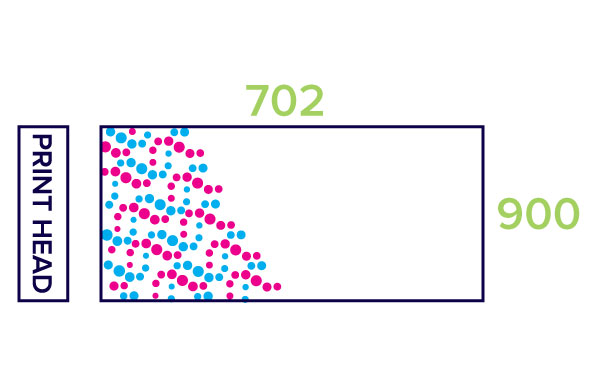

Higher Resolution

Helical printing can achieve much higher resolution images in both X and Y directions. Unlike single-pass printing which is limited by the low print head native resolution in the Y direction.

Applications

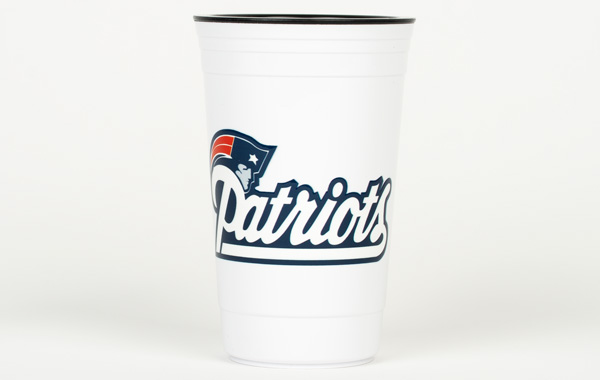

Stadium Cups

A common item that is typically printed in large volumes. The Revolution® high-speed digital cylinder printer is capable of meeting the demand for larger runs with full-color customizable graphics. This cylindrical printer for stadium cups was also designed to print the body and lip- ensuring graphics cover the entire product. Specialty pre-treatment is added to provide the best adhesion for this application.

See the Revolution® print on stadium cups

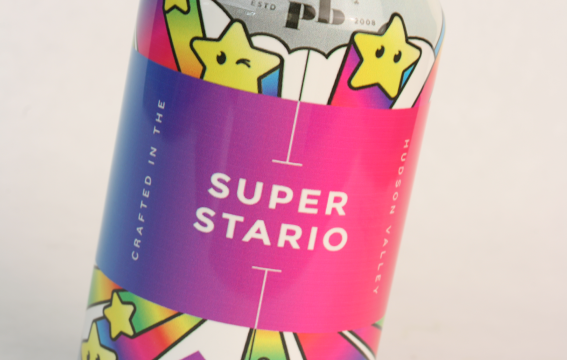

Aluminum Cans

The Revolution® high-speed digital cylinder printer is a perfect fit for aluminum cans of all sizes. From coffee cans to wine cans to beer cans and crowlers, this machine automates the digital printing process. Automatically load, pre-treat, print and then unload your product from the machine. The end result is an eye-catching graphic that is guaranteed to make your product stand out.

Learn more about Beverage Can Printing

Stainless Tumblers

The stainless steel tumbler is increasingly becoming popular for its reusability and insulation. The Revolution® cylinder bottle printer can quickly print a full seamless wrap around these tumblers with ease.

Pint Glasses

Excellent for bars, breweries, and restaurants. The Revolution® cylinder inkjet printer can meet the high standards for any graphic in full vibrant color compared to single color screen-printed designs.

Candle Holders

Candle holders are often overlooked as a decorative piece…until now. The candle market is expressing the need for candles and design to go hand in hand. Buyers don’t want stickers, they want elegant, fun, customizable graphics printed at the highest quality possible.

OPTIONAL ACCESSORIES

Head Recovery System

The Head Recovery System is capable of cleaning both Gen 4 and Gen 5 printheads. Head recovery can be performed to restore printheads that may be clogged and generally increase the longevity of the printhead. By using EBD cleaner in combination with this unit, printheads can be cleaned for further printing.

Cleans Gen 4 and 5 printheads
Utilizes EBD Cleaner
Available in 120VAC or 220VAC

Resources

Revolution® High-Speed Digital Cylinder Printer	Brochure	us
Revolution® High-Speed Digital Cylinder Printer	Video	en

Specifications

Product Type

Cylinder or Taper (360 degree print)

Part Diameter

63.5 mm - 115 mm (2.5 x 4.5 in)

Part Length

76 mm - 305 mm (3 x 12 in)

Lamp Style

8W LED for pin cure & final cure

Ink Type

UV LED

Ink Configuration

CMYKW+Varnish

Bulk Ink System

3 Liter

Dimensions (lxwxh)

2724 mm x 1778 mm x 2260.6 mm (107 x 70 x 89 in)

Voltage

3 Phase 380/220 VAC & Single Phase, 220 VAC @ 8 AMP

Maximum Resolution

900 dpi

Bed Type

Rotary

Weight

5,000 lbs. (2268 kg)
